4x OMBE Source

Ideal for evaporation of organic compounds

Maximum temperature 1000 K

Combined deposition

Minimum crosstalk

Long lifetime

Small size

 4x OMBE Source Data Sheet (120 kB pdf-file)

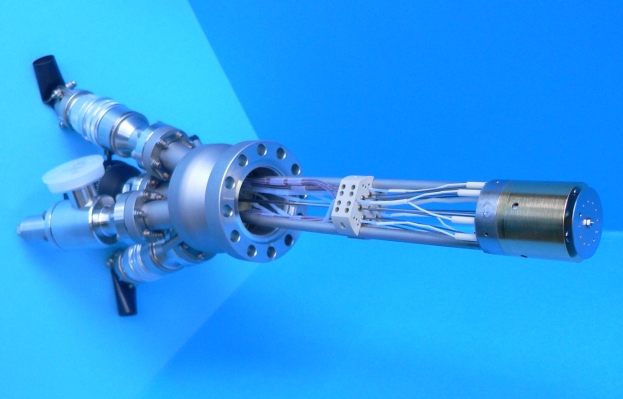

Versatile evaporation source for Organic Molecular Beam Epitaxy (OMBE). A very compact design allows the operation of four cells in spite of the source small dimensions (mounting on DN38CF flange). An efficient radiation shield avoids heat radiation and crosstalk between the cells. Independent thermocouple sensors ensure fast and precise temperature control for each cell.

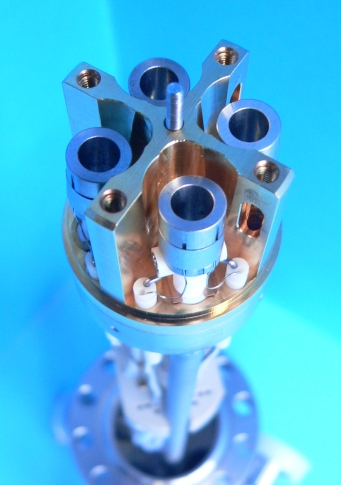

  • 4 independent crucibles oriented on the same focus.

  • Independent radiative heating by means of integrated tungsten filament.

  • Uniform temperature distribution through compact design.

  • Smart shutter design allows to operate two crucibles at the same time.

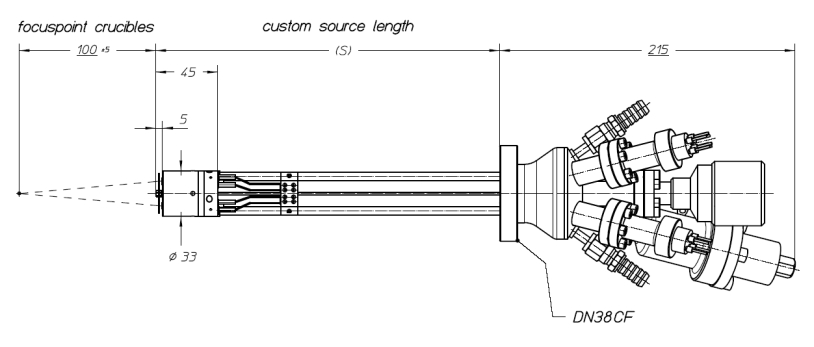

  • Mounting on DN38CF flange. Larger flange sizes on request.

  • Integrated DN16CF pumping port for retractable sources.

  • Custom source length.

  • Optional CF minigate for quick evaporant exchange.

  • Independent accurate temperature measurement by means of type K thermocouple.

  • Minimal heat radiation through water or LN2 radiation shield.

  • Minimal crosstalk through efficient temperature isolation.


Technical data



  crucible materials   Tungsten
  Tantalum
  Quartz
  Alumina (other materials on request)
  crucible volume   0.07 cc (other sizes on request)
  temperature range   up to 1000 K
  temperature stability   < 1 K / hour without PID controller
  temperature crosstalk   < 10 K at a temperature difference of 500 K
  cooling refrigerant   water
  LN2
  mounting   DN38CF flange
  maximal bakeout temperature   200°C











Temperature test
(water cooling)
  U[V]   I[A]   P[W]   Crucible 1 [°C]   Crucible 2 [°C]   Crucible 3 [°C]   Crucible 4 [°C]   Coolhead [°C]
  0.50   0.90   0.45   75.7   31.8   32.0   32.2   31.5
  0.75   1.08   0.81   133.8   32.7   33.3   33.3   32.8
  1.00   1.19   1.19   199.2   33.4   35.0   34.8   33.7
  1.25   1.31   1.64   270.0   35.2   35.7   35.6   34.4
  1.50   1.42   2.13   332.2   35.7   36.4   36.4   34.8
  1.73   1.53   2.64   390.2   36.8   38.0   37.9   35.4
  2.00   1.62   3.25   442.0   37.3   38.5   38.4   35.5
  2.50   1.86   4.65   531.3   39.7   42.3   41.6   36.7
  3.00   2.03   6.10   611.3   40.3   44.8   42.8   36.1
  3.50   2.19   7.66   680.4   41.5   45.2   44.0   36.8
  4.00   2.34   9.34   730.3   41.6   46.3   45.3   36.7
